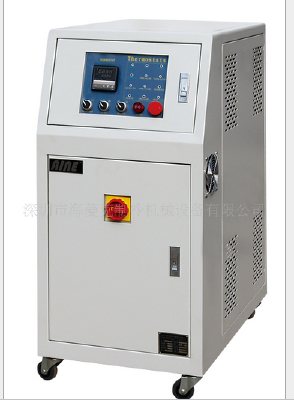

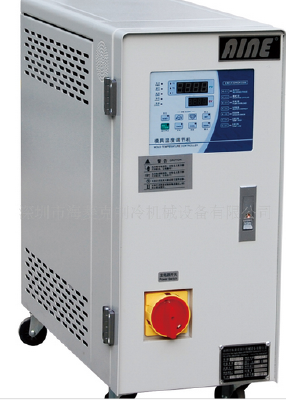

Brand herine model HL-06WS product alias mold temperature machine

The product is used in the plastic pot air layer heating constant temperature motor power 0.37 (KW) shape size 520*235*520 (mm)

Weight 62 (kg) category water temperature machine warranty

Whether to provide processing customization is

Mold temperature machine instructions:

Purpose: used for heating and constant temperature of plastic tank overhead layer

The temperature of the water inlet temperature is ~100, 10, and the heating period is to reach the set temperature within 20 minutes after the start of the boot.

Heating mechanism: 1, the use of imported SUS316L stainless steel heating pipe, one of the molding, pipe loss of small, uniform heating;

2, using specially designed heating tube design, top heating, effectively avoid burnt arc phenomena and due to water shortages caused by the heating tube, U-shaped layout design, reduce heating amount of the single heating tube, reduce the fouling phenomenon and prolong the service life.

3, the heating barrel is made of high quality SUS304 stainless steel seamless pipe production, pressure, temperature, corrosion resistance;

4, all heating and circulation pipeline using external heat preservation layer processing, reduce heat dissipation, save energy consumption;

5, heater wiring terminal using stainless steel screws (bolts), prevent oxidation, and heat resistant insulation casing protection;

Media circulation mechanism:

1, the use of the South brand stainless steel pump circulating water, in order to make the water flow to the various locations of the customer equipment;

2, the use of SUS304 stainless steel and high quality brass as the media cycle
