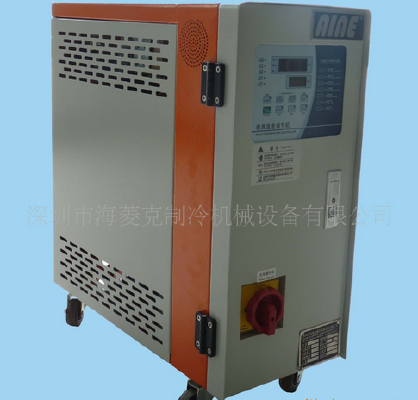

Brand model HL-12WS product alias hot herine RHCM mold temperature control

Products use hot water high light without mark mold temperature control motor power according to the dimensions of a model (kw) according to the model (mm)

Weight according to the model (kg) category mold temperature machine after-sales service warranty

Rapid lift die temperature technology

The deficiency of the traditional injection mold temperature control is as follows

Can not meet the needs of rapid heating and rapid cooling in high gloss injection molding.

The temperature rise is small, and the surface of the product can only be reduced and can not be eliminated.

The higher the hardness, the worse the mobility. Therefore, the hardness of the surface of the product can only reach HB level, and can not meet the actual needs of the actual use.

When the mold is heated, the temperature of the mould is expanded, and the temperature of the mould is contracted, and the clamping force is not stable.

Easy to cause the product to hit the dissatisfaction, the burning, the internal stress and so on all kinds of defects.

Mold configuration

Mold surface requires a very high degree of finish, in order to ensure the surface quality of the product.

The internal opening of the mold must be reasonable to ensure that it can be quickly heated and cooled.

The pipe should have good thermal conductivity.

Because of the production process need to keep heating and cooling, the mold selection of steel.

Uniform structure, small heat expansion coefficient.

In the use of the process should pay particular attention to mold maintenance, to ensure that dry, clean.

HL application examples

Advantages of high gloss over hot water temperature control machine

To eliminate the surface welding wires and welding traces, corrugated, silver marks.

A thorough solution to the surface shrinkage of plastic products.

Improve the surface finish of the product, so that the surface finish can be achieved.

Products do not need to spray follow-up processing, improve the rate of finished products 20-30%.

To solve the phenomenon of floating woven products produced by the fabric to make the quality more perfect.

To improve the quality and strength of the injection molding and improve the quality and strength of the injection molding.

The injection molding cycle can be reduced by more than 60%, and the fluidity and filling effect of the thick wall can be enhanced.

95% heat recovery.

100% of media recovery.

No need to connect the boiler and other external temperature control equipment, omit the complex boiler equipment (high pressure equipment safety and environmental protection approval) and pipeline engineering.

Complete solution to the problem of energy consumption of steam in boiler.

The volumesmall may move at any time with the use of different machines, not environmental protection phenomenon of hot water of 180 DEG C to completely replace the boiler.

Characteristics of high temperature and hot water temperature control machine

10.4 inch LCD (optional), touch mode Chinese digital input, full Chinese interface, simple operation.

Full closed loop control input output temperature detection, to mold the actual temperature feedback PLC, number of tiles change show that ensure that the output is stable and accurate.

High temperature hot water, cold water, air temperature and pressure six alarm, the use of time and temperature action with the injection molding machine signal interlock.

The whole machine adopts European and American imported components.

Dual single mold temperature detection (optional), 316 stainless steel tube pipe with multiple input and output, input and output interface.

The whole machine is equipped with heating, cooling, hot and cold conversion control function.

High temperature hot water, cooling water recycling system, energy saving effect is obvious.

Application of high gloss over hot water temperature control machine

Has a broad prospect of application in household appliances, automobiles, communications, daily necessities, medical equipment and other industries at present, such as LCD TV, LCD computer monitors, notebook computers, mobile phones, air conditioning, car LCD, car inner decoration, lights and optical, OA, A*V instruments, etc. industry.
