- Place of Origin: China
- Brand Name: Herine cold restraint
- Model Number: HL-00A
- Weight: 170.000 kg

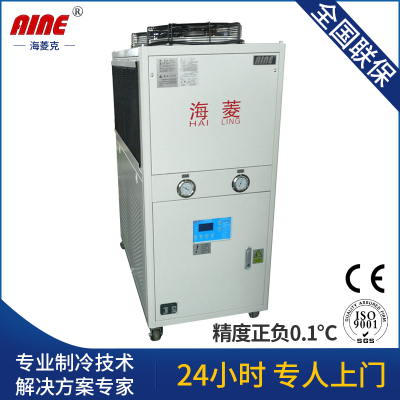

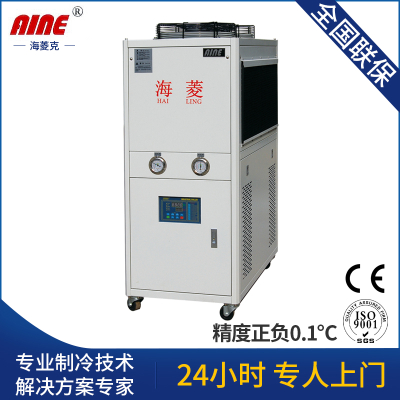

AINE series industrial water chillers are widely used in industries, including plastic & rubber machinery, electroplating, pharmacy, chemical engineering, ultrasonic cooing and printing. They can precisely control temperature in any process requiring water cooling, and greatly improve the efficiency and quality of production.
Features and functions:
1. Imported American and Japanese brand new compressors featuring built-in safety protection, low noise ,low electricity consumption, increased reliability & longer life.
2. SCHNEIDER electric components ensure the stable operation and long service life.
3. Imported Italian famous brand water pump, large flow, high efficiency and long lasting service life.
4. Imported precise digital display temperature controller is provided to precisely control water temperature with variation of ±1°C .Temperature can be set in the range from 5°C to 50°C.
5. Fully stainless steel thick water-tank-type evaporator is integrated with the built0in automatic water replenishing device for quick and convenient cleaning and maintenance.
6. The condenser to the water cooled unit is shell-and -tube type, with inner thread copper tube and reasonable design, the effect of heat exchanging is good .The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange.
7. Static plastic spraying enclosure with aesthetic design, elegant appearance, convenient operation and maintenance.
- Place of Origin: China
- Brand Name: Herine cold restraint
- Model Number: HL-00A
- Weight: 170.000 kg
| 风冷式工业冷水机规格参数表 | ||||||||||||||
| 型号Model | HL-01A | HL-02A | HL-03A | HL-04A | HL-05A | HL-06A | HL-08AD | HL-10AD | HL-12AD | HL-15AD | HL-20AD | HL-25AD | ||
| 参数Parameters | ||||||||||||||
| 制冷量 Cooling capacity | KW/hr | 50Hz | 2.94 | 5.67 | 8.69 | 10.9 | 13.95 | 16.9 | 21.8 | 28.01 | 33.79 | 44.15 | 59.08 | 71.72 |
| 60Hz | 3.44 | 6.63 | 9.82 | 12.75 | 16.32 | 19.77 | 25.5 | 32.78 | 39.53 | 51.65 | 69.12 | 83.91 | ||
| Kcal | 50Hz | 2528 | 4872 | 7216 | 9347 | 1190 | 14560 | 18748 | 24089 | 29059 | 37965 | 50805 | 61683 | |
| 60Hz | 2958 | 5701 | 8442 | 10698 | 14028 | 17000 | 21935 | 28184 | 33999 | 44419 | 59442 | 72169 | ||
| 温控范围 Temperature range | 3℃-常温（0℃以下可定制） 3℃-Room temperature(Below 0℃ can to cestomized) | |||||||||||||
| 电源Power supply | 1N-220V 50Hz/60Hz | 3N-380V/415V 50Hz/60Hz | ||||||||||||
| 总功率Total power | KW | 1.27 | 2.02 | 2.85 | 6.65 | 4.86 | 5.61 | 7.65 | 9.9 | 11.4 | 13.7 | 18.8 | 22.75 | |
| 压缩机 Compressor | 类型 Type | 全封闭涡旋式或活塞式 Hermetic scroll type or piston | ||||||||||||
| 功率 KW | 0.75 | 1.50 | 2.20 | 3.00 | 3.75 | 4.50 | 6.00 | 7.50 | 9.00 | 11.00 | 15.00 | 18.75 | ||
| 风机 Blower | 风量 M³/h | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 | |
| 功率 KW | 0.14 | 0.14 | 0.28 | 0.28 | 0.36 | 0.36 | 0.9 | 0.9 | 0.9 | 1.2 | 1.6 | 1.8 | ||
| 冷凝器 Condensator | 形式 Form | 高效铜管套波纹型铝翅片Efficient brass sets corrugated aluminum fin | ||||||||||||
| 蒸发器 Evaporator | 水量 M³/h | 0.51 0.59 | 0.97 1.14 | 1.44 1.68 | 1.87 2.19 | 2.40 2.81 | 2.91 3.41 | 3.75 4.39 | 4.82 5.64 | 5.81 6.80 | 7.60 8.89 | 10.16 11.89 | 12.34 14.44 | |
| 水溶量 M³ | 0.028 | 0.040 | 0.050 | 0.050 | 0.065 | 0.065 | 0.13 | 0.18 | 0.18 | 0.21 | 0.28 | 0.32 | ||
| 进出水管径 G | G1/2" | G1/2" | G3/4" | G3/4" | G1" | G1" | G1-1/2" | G2" | G2" | G2" | G2" | G2-1/2" | ||
| 循环泵 Circulating pump | 功率 KW | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| 扬程 M | 22 | 22 | 22 | 22 | 23 | 23 | 23 | 21.5 | 21.5 | 21.5 | 22 | 22 | ||
| 机器尺寸 Machine size | L/mm | 680 | 800 | 940 | 940 | 1045 | 1045 | 1330 | 1330 | 1550 | 1550 | 1760 | 1970 | |
| W/mm | 420 | 480 | 555 | 555 | 555 | 555 | 725 | 725 | 750 | 750 | 860 | 900 | ||
| H/mm | 720 | 850 | 1060 | 1060 | 1160 | 1160 | 1330 | 1330 | 1460 | 1460 | 1560 | 1700 | ||
| 机组重量 Unit weight | KG | 60 | 90 | 130 | 140 | 170 | 210 | 270 | 350 | 370 | 480 | 590 | 790 | |
